Risk management
In June 2023, the new Drinking Water Ordinance (“Trinkwasserverordnung”, TrinkwV) came into force in Germany. Since then, water supply companies are obligated, among other things, to implement continuous risk management for water supply facilities (§ 34 TrinkwV). At TZW, we support water suppliers in setting up such a risk management system in accordance with DIN-EN 15975-2, drawing on our many years of experience: Risk management in water supply has been a key issue for TZW for 20 years. Risk management for the catchment area holds a separate position in risk management. This will become even more important with the new Drinking Water Catchment Area Ordinance (Trinkwassereinzugsgebieteverordnung, TrinkwEGV) of 4 December 2023. Accordingly, the documents for the assessment of the catchment area must be submitted to the competent authority by 12 November 2025.

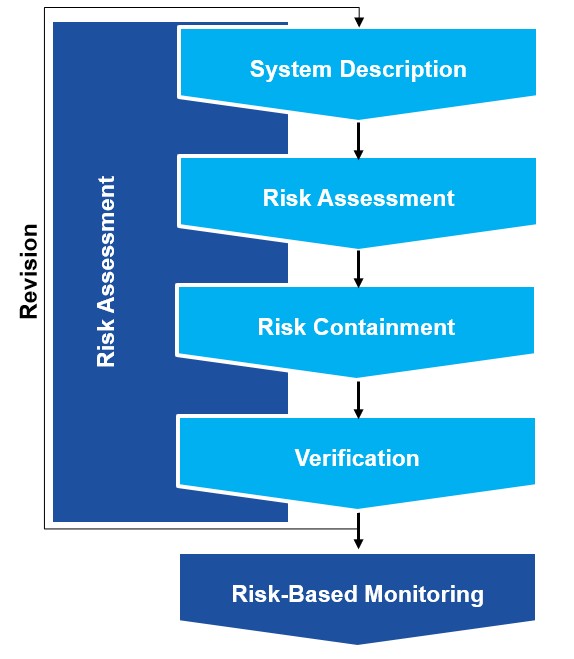

The risk management process: The steps are carried out in close coordination with the involved utility company and are adapted to local requirements in terms of scope and level of detail.
What do we offer?
The concept TZW_RISK
Our concept „TZW_RISK“ complies with the legal requirements and is based on the generally accepted rules of technology. To this end, it consolidates expertise from the relevant TZW departments. Thanks to its modular structure, TZW_RISK is flexible and can be adapted to local conditions and task allocation between TZW and the supplier. Another advantage for our customers is that they only have one contact person at TZW who coordinates the process internally.

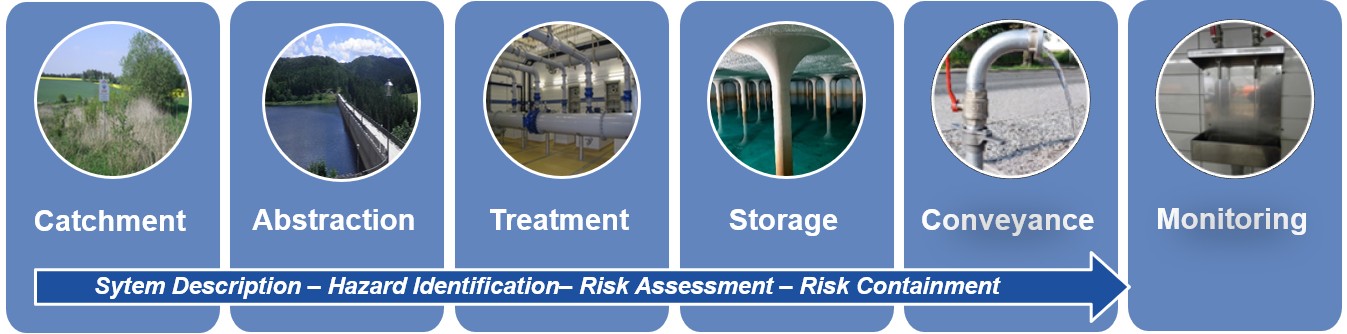

The TZW_Risk concept is very flexible thanks to its modular structure (click to enlarge graphic)
Further services relating to risk management in the water sector
- Risk management systems for the entire supply system in accordance with §34 TrinkwV and DIN EN 15975-2 or DVGW W1001 (M)
- Specia case: Risk management in the catchment area in accordance with TrinkwEGV or DVGW-Information Wasser No. 105
- Development and support for the introduction of risk management in water supply companies
- Proposals for adapting or maintaining the monitoring plan in accordance with TrinkwV § 37 [formerly: Risk-based adaptation of the sampling plan (RAP)]
- Criticality and vulnerability analyses
- Resilience analyses, e.g. in accordance with DVGW W1003 (A), BBK-funded project KRITIS-GIS_T
- Climate change adaption, e.g. our current DVGW-funded project ResilJetzt!
TZW's work is based, among other things, on all relevant regulatory and legal frameworks like:
Drinking Water Ordinance (“Trinkwasserverordnung”, TrinkwV), especially §34 and §35 TrinkwV
Drinking Water Catchment Areas Ordinance (“Trinkwassereinzugsgebieteverordnung, TrinkwEGV)
DIN EN 15975-2: Security of drinking water supply - Guidelines for risk and crisis management - Part 2: Risk management (December 2013)
DVGW W1001 (M): Security in drinking water supply - Risk and crisis management (November 2020)
DVGW-Information WASSER No. 105: Security in drinking water supply - Risk management in normal operation for catchment areas of groundwater wells for drinking water abstraction (January 2021)
DVGW W1003 (A): Resilience and security of supply in the public water supply (June 2022)
Methods and equipment
- Data analysis and scientific evaluations, document review
- Analyses of water quality data
- Site and facility inspections, meetings with authorities & stakeholder workshops
- Geographic Information Systeme (GIS) for analyses of water catchments (ArcGIS Pro, ArcGIS Desktop, QGIS)
- Expertise in accordance with theTrinkwV § 35 or TrinkwEGV § 13 (Documentation of relevant university education, professional experience, or training is available)
Publications
Sturm, S.; Brauer, F.; Hegewald, T.; Freier, K.: (2022) Risk Assessment and Implementing Risk Management for a Complex Drinking Water Reservoir-System in Saxony, Germany. Water Safety Conference 2022. Narvik 22-24 June 2022. Conference Proceedings. pp. 97-98; Editors: International Water Association (IWA), World Health Organization (WHO), UiT the Arctic University of Norway, Chalmers University of Technology, Sweden.
Rickert, B.; Zügner, V.; Sturm, S.; Brauer, F. (2022): Germany’s Way to WSP Through Policy Actions and Technical Standards. Water Safety Conference 2022. Narvik 22-24 June 2022. Conference Proceedings. pp. 66-68; Editors: International Water Association (IWA), World Health Organization (WHO), UiT the Arctic University of Norway, Chalmers University of Technology, Sweden.
Brauer, F.; Sturm, S.; Kaupe, M.; Schiffman, S. (2022): Risk Assessment for Groundwater Catchment Areas. Water Safety Conference 2022. Narvik 22-24 June 2022. Conference Proceedings. pp. 101-102; Editors: International Water Association (IWA), World Health Organization (WHO), UiT the Arctic University of Norway, Chalmers University of Technology, Sweden.
Brauer, F.; Sturm, S.; Fischer, T.; Gottwalt, J.; Hahne, L. (2022): Web-Based Software Application for Risk Management of Drinking-Water Supplies. Water Safety Conference 2022. Narvik 22-24 June 2022. Conference Proceedings. pp. 124-125; Editors: International Water Association (IWA), World Health Organization (WHO), UiT the Arctic University of Norway, Chalmers University of Technology, Sweden.
Brauer, F.; Sturm, S.; Kaupe, M.; Schiffmann, S. (2019): Mehrwert des Risikomanagements für den Wasserversorger. DVGW energie | wasser-praxis 12/2019, 53-55.
Riegel, M.: Kritikalitätsanalyse für Objekte der Trinkwasserversorgung. In: Zukunftsthemen der Wasserversorgung. Veröffentlichungen aus dem Technologiezentrum Wasser 90, ISSN 1434-5765, 117-133 (2019): Identifizierung kritischer Infrastrukturen in der Wasserversorgung (KRITISGIS-T); Projekt im Auftrag des Bundesamts für Bevölkerungsschutz und Katastrophenhilfe (BBK); (2017 – 2020).
Sturm, S.: Sicherheit in der Trinkwasserversorgung – Water Safety Plans als Instrument zum Risikomanagement. In: Risiken in der Wasserversorgung. Stuttgarter Berichte zur Siedlungswasserwirtschaft., Bd. 235, 35-46 (2017).
Brauer, F.; Bethmann, D.; Kaupe, M.; Schiffmann, S. (2015): Risikomanagement für ein Kölner Wasserwerk. DVGW energie | wasser-praxis (6), S. 42–50.
Umweltbundesamt(UBA) und TZW [Hg.]; Schmoll, O.; Bethmann, D.; Sturm, S.; Schnabel, B. (2014): Das Water-Safety-Plan-Konzept: Ein Handbuch für kleine Wasserversorgungen. Dessau-Roßlau. https://www.umweltbundesamt.de/sites/default/files/medien/374/publikationen/wps-handbuch-web.pdf.
